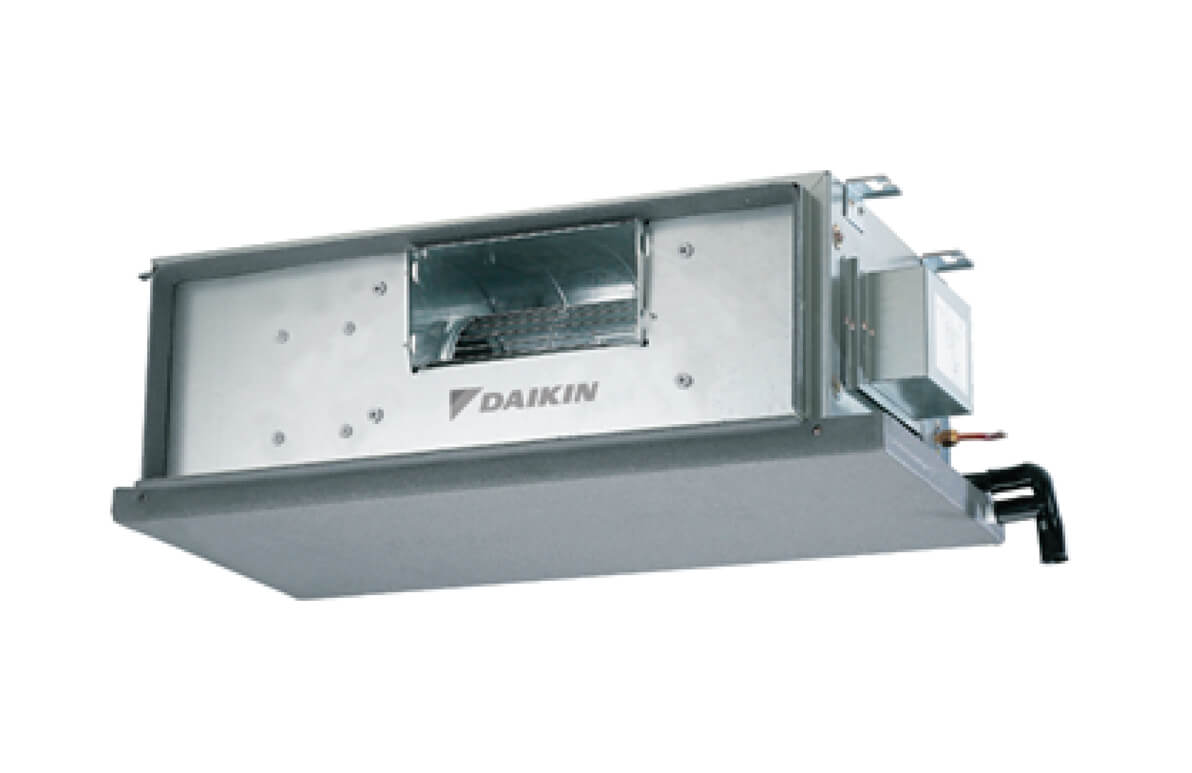

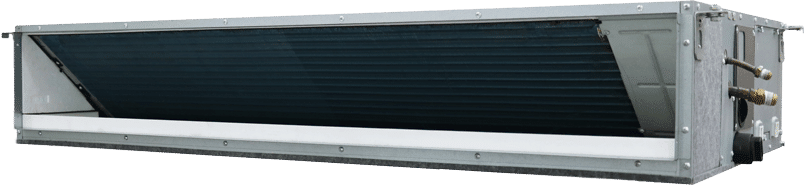

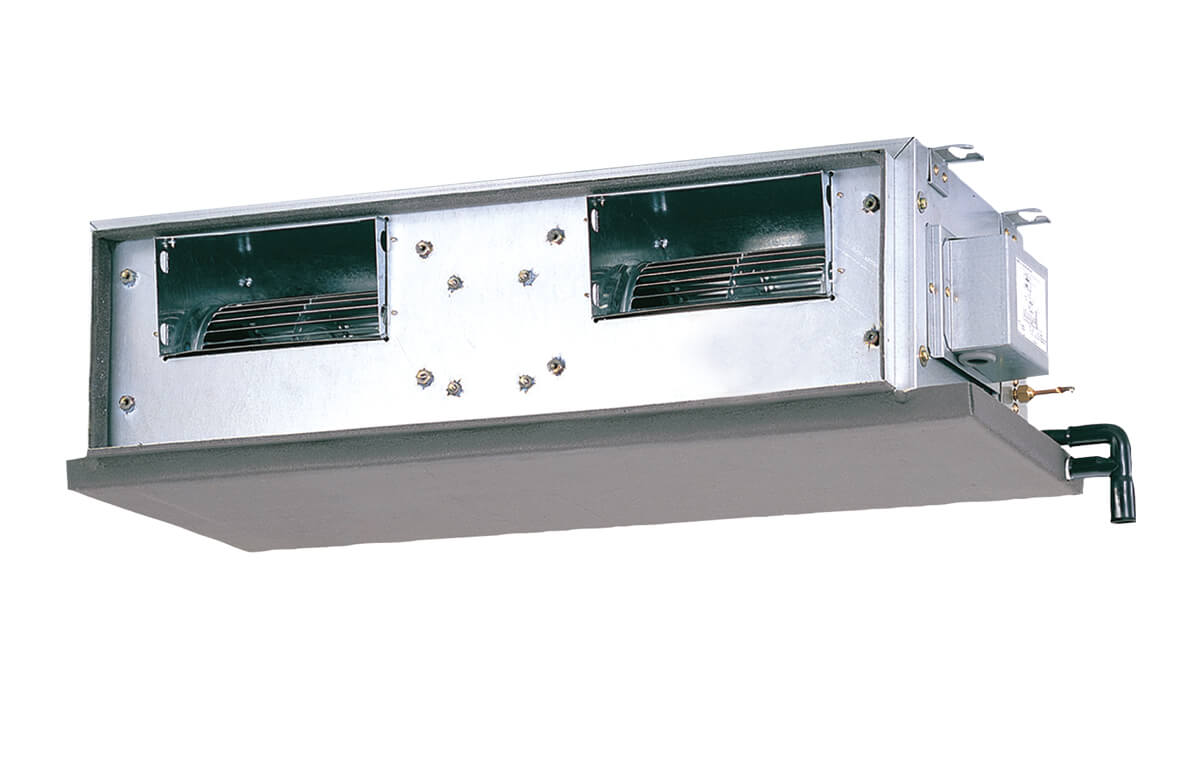

FDBC-A/ FDMC-A SERIES (R32)

FDBC-A & FDMC-A series are one of the industry’s most compact bodies in the low and middle static pressure range which comes in extremely low height and is designed to adapt to many application.

PRODUCT RANGE

R32 Non Inverter Single Split


CAPACITIES

1.0 - 6.0hp


REFRIGERANT

R32

Product Features

high performance

Utilizes high performance compressors to achieve higher specification. R32 refrigerant properties boost the capacity and efficiency of units for selected models to achieve full tonnage.

New blow through Operation

New blow through system platform allows for lower height of ceiling concealed unit and more quiet operation.

Quiet operation with new design

New Ceiling Concealed platform with blow through operation provides uniform air distribution and quiet operation.

Easy Installation

One of the industry’s most compact unit in the middle static pressure range with as low as 250mm height across all models. New Ceiling Concealed is able to fit into ceiling height as low as 260mm.

EASY MAINTENANCE

Designed for easy accessibility to drain pan, heat exchanger coil, blower and motor.

OUTDOOR BLUE FINS

Comes with standard blue fin outdoor unit’s heat exchanger which are processed using a special anti-corrosion treatment. The surface is covered with a thin acrylic resin layer to enhance the fins’ resistance to salt corrosion.

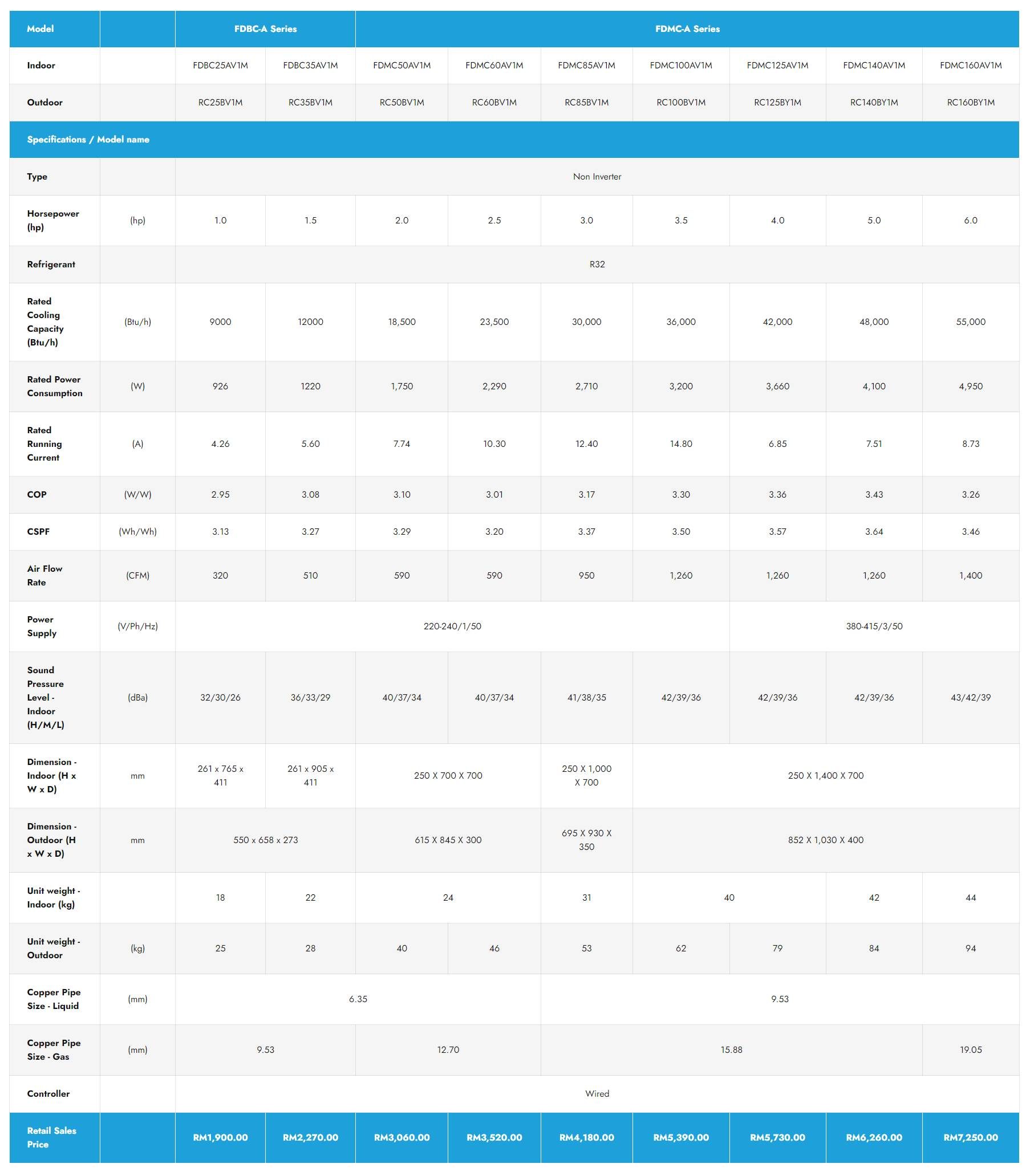

Technical Specification
